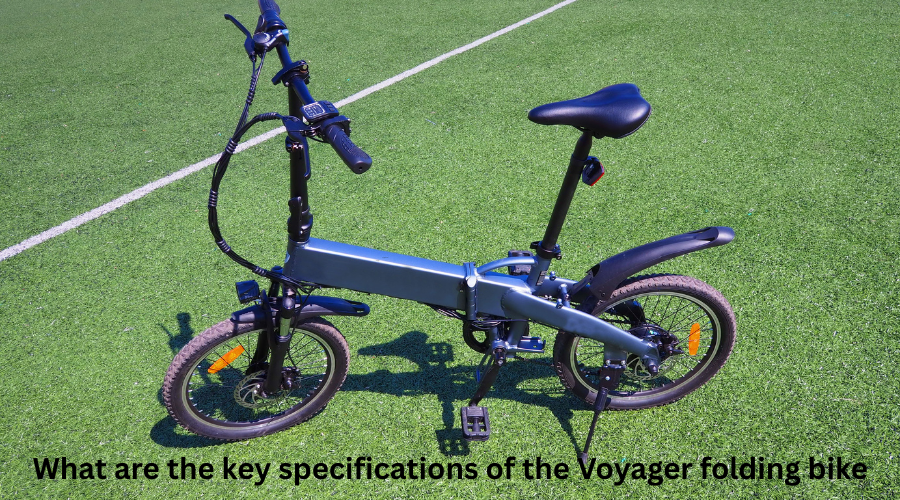

Commuters needing portability without sacrificing power will find the Voyager bike ideal. This guide simplifies the key specifications to know before stocking or buying this model. The short, clear numbers make it easy to compare with other folding e-bikes.
The Voyager uses a 500W brushless motor. This motor type is ideal for city driving and medium steep hills, but not bulky or heavy. Brushless motors operate more quietly and need less maintenance than brushed motor choices, a factor to consider when commuting daily.
The battery power to the motor is controlled by a 48V, 20A controller. This controller size is adequate for power delivery and acceleration at all five pedal-assist levels.
The Voyager is powered by a 48V 13Ah lithium battery that weighs around 8.4 lbs. This capability allows up to 25-45 miles per charge or more, depending on terrain, rider weight, and pedal assist level during the ride.
Any suitable batteries for this model can be charged with a 2A charger. Charging time is generally 5-8 hours depending on the first full discharge sequence before charging starts. For daily commuters, it would be more convenient to plan charging times around this period to ensure maximum availability.
The frame is constructed from A6061 aluminum alloy, which is a common material used in e-bikes for its weight-to-strength ratio. It’s easy to fold and pack, but still structurally strong while you’re riding around as normal.
The frame has an IPX5 water-resistance rating. This rating will hold the bike up to a low-pressure water jet, so it can be used for light showers. But it will not withstand heavy downfalls or submersion.
The Voyager rides on 160mm mechanical disc brakes. For year-round use, disc brakes can be more reliable in wet weather conditions than rim brakes.
The 20" lockable suspension fork provides comfort over uneven roads or light off-road terrain. Lockout mode also lets you lock the fork on smooth pavement, which can improve pedaling efficiency when suspension isn't needed.
The Voyager has a Shimano Altus 7 speed derailleur and Shimano 7 speed shifter. The torque from this drivetrain is delivered in a range suitable for a variety of road conditions from moderate climbs to flat city streets.
It features a Shimano 7-speed freewheel paired with a 52-tooth chainring. This mix of high and low gears makes cycling easy.
The Voyager comes with 20-inch by 2.125-inch puncture-proof tires. Such a size makes it easy to fold the bike for transport practices but also provides a good stability level and comfort for everyday use. A key point for day-to-day commuters is the product's puncture resistance, which reduces maintenance downtime when punctures occur.
The LCD display shows the current speed, the battery life and the pedal assist mode. There's also a USB-C charging port, allowing riders to charge a phone or other accessory device off the bike's charging system while out on a ride.
There's a half-twist throttle, and 5 levels of pedal assist on the Voyager. This pairing offers flexibility to ride with full electric power, pedal-assisted, or both, depending on effort level and terrain.
The Voyager weighs about 50.6 lbs without the battery and about 59 lbs with the battery attached. The weight is generally considered low for its class of foldable e-bikes, considering the extra weight of the battery and the motor.
The total payload capacity is 250 lbs. This power is enough to handle a variety of riders and still carry extra gear on the optional rear rack, within the safe operating parameters.
The handlebar measures 22.2mm by 25.4mm by 600mm in length. A seat post has a measurement of 30.4mm x 350mm and will come with a 35.0mm seat post clamp that is compatible with it. These measurements matter when buying replacement parts or accessories that attach to the stock parts.
This model is recommended by the manufacturer for riders from 5'0” to 6'3”. With this range, this makes the Voyager available for a wide spectrum of riders. But taller or shorter individuals outside this range should test ride before buying.
The Voyager gets an HQ-Comfort saddle for longer commutes, not just short rides. Riding thousands of miles a week requires a comfortable saddle!
A built-in rear rack carries goods without a backpack. It's a cool feature for those who may take their office bag, groceries, or anything else they need during their commute.
Specifications important for buying.
The retailers and distributors need to match the specifications with their intended market. Mid-range price and compact folding design, light weight makes it ideal for city commuters. If you live in a hilly area you might want to check that the 500W motor and gear range are enough for your local terrain.
The Voyager is designed for lighter, more compact use off-road or for heavy loads compared to higher-wattage models in the 750W range. Consumers should place this model in their product portfolio as desired.
A trustworthy supplier will provide a clear response with supporting documents, not just blanket claims, when it comes to product quality.
What is the exact brand of battery cell, and what is the cycle-life rating?
Does the frame warranty cover rust, or only structural damage?
How long is the current lead time for bulk orders of this model?
Do spare parts like a brake pad or tire come in easily?
What certifications ensure the battery is safe to ship internationally?
The overall design of the Voyager bike is a compact aluminum frame, 500W motor, and practical commuter design all wrapped into one portable package. With these specifications, buyers can compare the model to the right consumer group and get a true sense of the competition among available e-bikes.
What is the best place in the world to get bulk Voyager bikes?
You can get them from reputable sources through trusted trading platforms or by contacting e-bike distributors directly.
In what way can I pick the ideal supplier for my folding e-bike, such as the Voyager?
Check on battery certification, warranty periods, and parts availability prior to placing bulk wholesale battery orders.
Where can I buy the Voyager folding bicycle for my retail store?
Work with an authorized source that offers spec sheets and uniform levels of production.
How much weight can the Voyager bike carry?
Total Voyager payload capacity is 250 lbs with riders and cargo in the back rack.
How far can the Voyager bike go on one battery charge?
The Voyager offers a range of 25 to 45 or more miles per charge.
